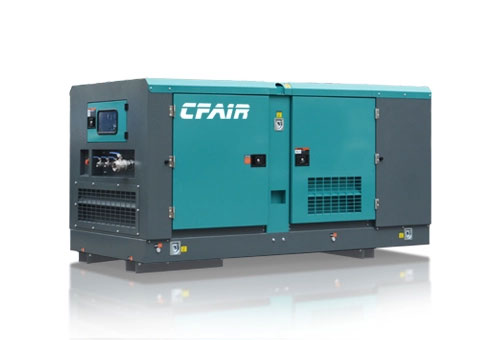

CFAIR-CF535BK-10.5 Diesel Air Compressor

CF535BK-10.5 manufacturered by Hangzhou Caifull Precision Machinery, is compact diesel air compressor. This portable diesel compressor can acheive performance with 535 CFM, 10 Bar working pressure, driven by a robust Cummins engine. CFAIR mobile diesel compressor is designed to deliver consistent and high-pressure compressed air for a multitude of industrial applications.

Specification

From construction and mining to oil and gas operations, CF535BK-10.5 Cummins-powered compressor excels in powering heavy-duty pneumatic tools, drilling operations, and maintaining consistent air pressure for various industrial processes. High-pressure capabilities also make it ideal for sandblasting and shipyard operations. In essence, CFAIR portable diesel air compressor stands as a reliable solution for any application demanding a robust source of high-pressure compressed air.

Air End Type Rotary Twin Screw, Single stage
Air Outlets 3/4'' x 3 + 2'' x 1
Free Air Delivery CFM (mm³/min) 535 (15.1)
Working Pressure bar (psi) 10.5 (152.3)
Engine Model CUMMINS
Fuel Diesel
Emission China Stage II
Engine Type 6 cylinder, Direct-injection
Displacement L 5.9
L X W X H mm 3000*1350*1465
Weight kg 1980

Features & Benefits

High-performance power: With its advanced technology and robust construction, this Cummins engine delivers exceptional power and reliability even in the harshest environments.
State-of-the-art Screw Element: - Utilizes authentic GHH air end - Advanced SAP profile design - Constructed with specialty steel sourced from America for the rotors - Equipped with premium element bearings from SKF in Sweden.
Excellent Accessibility Optimum Serviceability: Large enclosure doors provide excellent component accessibility for unrivalled ease of maintenance. Service and maintenance work can therefore be performed quickly and efficiently, which means maximum efficiency and compressed air availability?
Protective Air Filtration: Generously sized of heavy-duty intake filters protect motor and air end working condition from serious dust environment, and with maintenance indicators extend engine and compressorlife.Optimised design and separate air filters considerably enhance reliability and service life. The filters can be changed onsite quickly and simply as required.
Advanced fuel injection technology: Equipped with advanced fuel injection technology, this engine delivers precise and efficient fuel delivery, which translates into better performance and fuel efficiency
Low noise: Their enhanced safety features and very low noise levels make them the perfect choice for any jobsite
Optimized Cooling System: Large-diameter and low speed fan enhances large air flow,lownoise and good cooling performance. Efficient cooling system is designed to be used in ambient temperature up to 52`C.Non-welded connection of oil cooler andengine radiator protects thermal stress damage and extends service life greatly.Surplus heat is 30% and cooling temperature difference is 8'C roughiy.Superiorty heat exchanging efficiency.
Alternative Colors? Blue-Equivalent RAL5017 Green-Equivalent RAL6024 Red-Equivalent RAL3020 Orange-Equivalent RAL2009 Other color available as customer request
Exclusive pneumatic control system: developed by CFAIR, to adjust automatically engine rotation speed, depending on the air to be delivered.This system is highly reliable and ensures fuel consumption saving.
