FRUMECAR Mobile Block Making Machines

FRUMECAR Mobile Block Making Machines

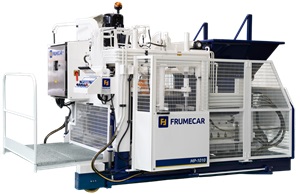

The Frumecar Mobile Block Making Machines are fully automatic machines specially designed for the manufacturing of concrete elements, without the need for operators and without using rails (optional over rails).

The machine is designed to produce blocks, ceiling blocks, curbs, planters, paving stones, manholes (optionally up to 70cm in height), gutters, ventilation ducts, wall blocks, greenhouse blocks, and all types of prefabricated elements with vertical demolding.

Its advanced technology and automation capacity make it highly effective and efficient for the mass production of high-quality precast pieces.

Specification

  • Working area 1.000 x 1.000 mm
  • Minimum and maximum height of pieces 60 and 500 mm (optionally up to 700mm)
  • Production capacity*
  • 20x20x40 blocks 9.000 units
  • 15x20x40 blocks 10.000 units
  • 15x20x50 hourdi blocks 10.000 units
  • 15/12x25x100 curbs 2.000 m
  • Pavestones 600 m2
  • Transport dimensions 4.25×2.10×2.34 m
  • Mobile Block Making Machine weight 6.000 Kg
  • Average weight per mold 800 Kg / 1.200 Kg

Features & Benefits

  • Minimum and maximum height of pieces from 60 to 500mm (optionally up to 700mm).
  • Automatic alignment by parallelism using ultrasonic sensors and hydraulic leveling of the filling equipment.
  • Omron automation controllers to control all parameters via a color screen.
  • Concrete mix receiving hopper with hydraulic closure and lateral rotation for cleaning.
  • 4 brake vibrators of 3 kW each on the mold, and 2 motor vibrators with frequency variation and 3 kW in the machine, with a total installed power of 26 kW/35HP.
  • Front-wheel drive supported by 5 vulkollan wheels.
  • Metallic board with silent blocks for the perfect filling of the bottom of the pieces.
